| Model Series | JPIC-ADN1 |
| Part Number | JPIC-ADN1-N97000 (Intel® Processor N97) | JPIC-ADN1-N20000 (Intel® Processor N200) |

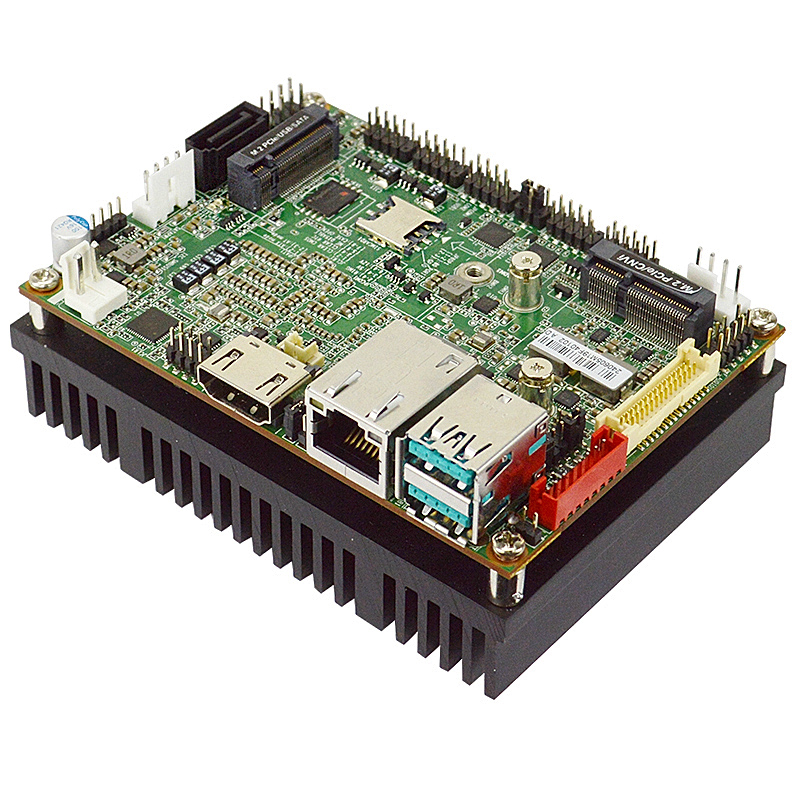

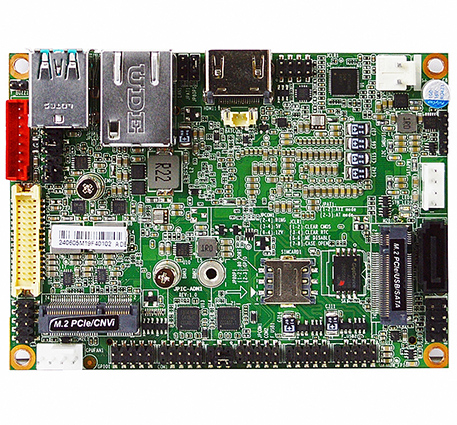

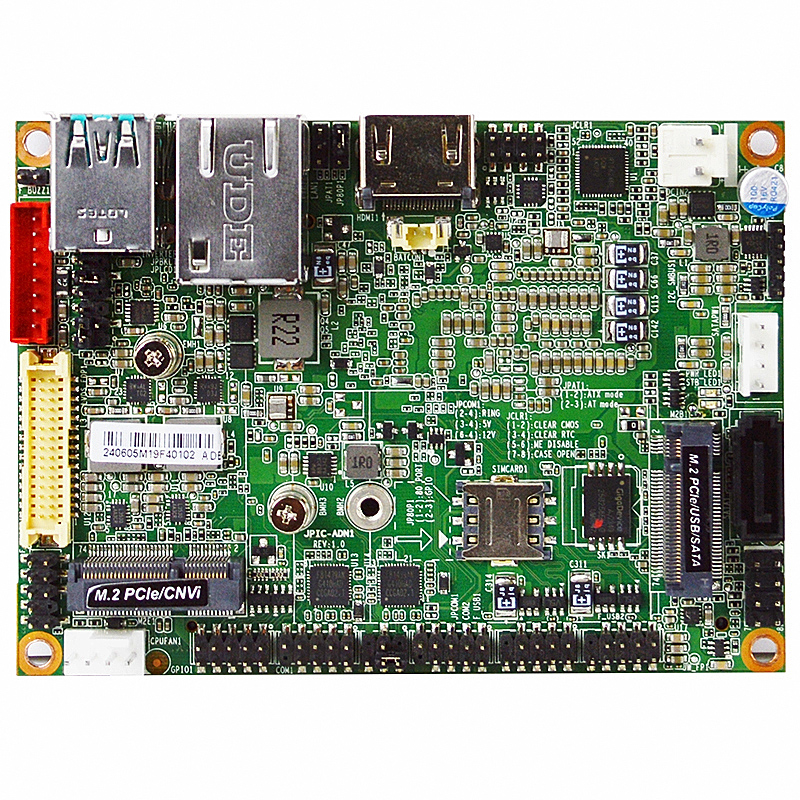

| Form Factor | Pico-ITX (100 x 72mm) |
| Processor | Intel® Processor N97, up to 3.60 GHz, 4-Core 4-Thread, 12W
* Ships with black finned aluminum heatsink for direct attach | Intel® Processor N200, up to 3.70 GHz, 4-Core 4-Thread, 6W
* Ships with black finned aluminum heatsink for direct attach |
| Memory | 1 x 262-pin Single Channel DDR5-4800 MT/s SODIMM up to 32GB Total |
| Graphics | Intel® UHD Graphics |
| Audio | Realtek ALC897 HD Audio |
| LAN | 1 x Realtek RTL8111H 1GbE |
| Storage | 1 x SATA3 6Gb/s
1 x M.2 B+M Key 2242/3042/3052 (USB 3.2/SATA3/PCIe 3.0 x2)
*Supporting B+M SATA or B+M PCIE 3.0 x2 or a B-key Cellular card |
| Super IO | FINTEK F81966AB |
| TPM | Intel fTPM 2.0 (PTT) |
| Back Panel Connectors |
1 HDMI 2.0b (4096 * 2160 @ 60Hz)
1 RJ45 LAN (10/100/1000)
2 USB 3.2 Gen 2x1 (10 Gb/s)
|

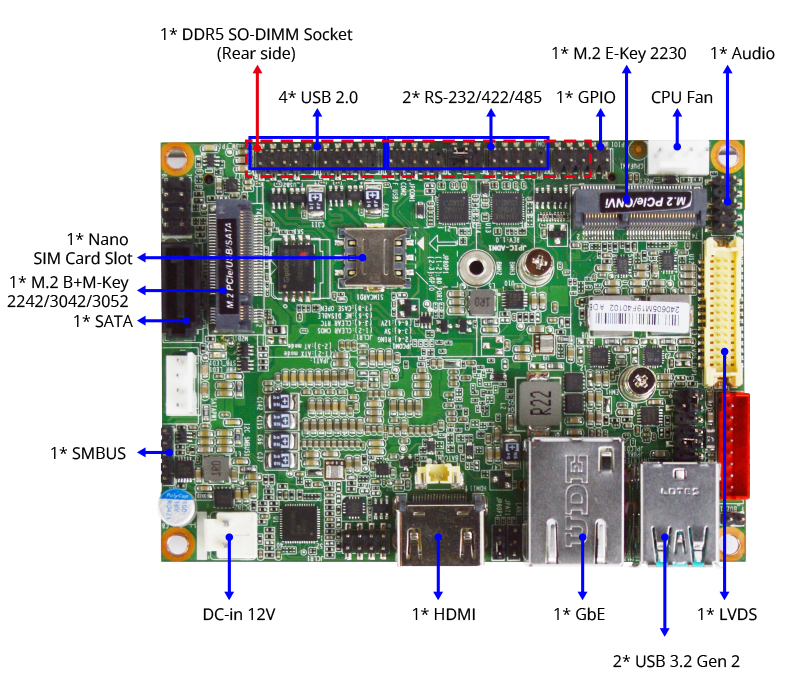

| Onboard I/O Connectors |
1 M.2 B+M Key 2242/3042/3052 (USB 3.2/SATA3/PCIe 3.0 x2)
1 M.2 E-key, 2230 (PCIe 3.0 x1/USB 2.0 for WiFi)
2 Serial Headers (2 * RS232/422/485)
2 USB Pin Headers for 4 additional USB 2.0 Ports
1 24-bits Dual Channel LVDS (1080p @ 60Hz) or eDP (4K @ 60Hz)
1 Nano SIM Socket
1 8 bit GPIO Header
1 4-pin SMBUS Header
1 9-pin Front Audio Header
1 AT/ATX Mode Jumper
1 Chassis Intrusion Jumper
1 2-pin +12V Power-In (Mating plug: JST VHR-2N or TE 1-1123722-2)
|
| Power Supply for JPIC-ADN1 |
|
Internal Power Supply – the board can be powered via the internal +12V 2-pin power connector, where pin 1 is +12V and pin 2 is GND. The internal 2-pin power connector accepts a JST VHR-2N or TE 1-1123722-2 connector from the power supply. A 12V DC-in 5.5/2.5mm barrel jack cable included.
|
| Market Segments Supported |
√ Industrial PC
√ Factory Automation
√ Retail (POS/Kiosk/ATM/Digital Signage)
√ Digital Security / Surveillance
√ Panel PC
√ Mini PC
|
| Environment |
Operating Temperature : -20 ~ 60°C
Storage Temperature : -20 ~ 85°C
Humidity: 10% ~ 90% RH @40°C (non-condensing)
|
